Reflective Glass

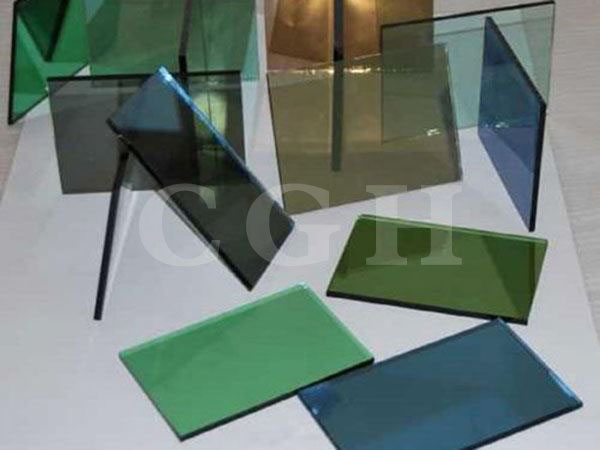

Color: clear, Euro bronze, golden bronze, euro grey, mist grey, dark grey, French green, dark green, ford blue, lake blue, dark blue, royal blue, pink, and etc.

Thickness: 4 mm, 5 mm, 5.5 mm, 6 mm, 8 mm, 10 mm, 12 mm

Size: 2134*1524 mm, 2140*1650 mm, 2200*1650 mm, 2250*1650 mm, 2140*1830 mm, 2440*1830 mm, 3300*2140 mm, 3300*2250 mm, 3300*2440 mm, 3660*2140 mm, 3660*2250 mm, 3660*2440 mm etc.

Standard: GB/T 18915.1 (China) and EN 1096-1 (EU)

Inquiry

Reflective glass, also known as coated glass, is a solar control glass that comes in two main types: hard coating and soft coating. As a leading glass manufacturer, we are proud to offer high-quality hard-coated reflective glass.

During the chemical vapor deposition (CVD) coating process in the tin bath, the coating material is vaporized and introduced into the glass band at a temperature greater than 600℃, resulting in the formation of a siliceous coating. The stable physicochemical properties of hard-coated reflective glass make it possible to cut, bend, drill, temper, heat-strengthen, or laminate the glass without affecting the coating.

Our reflective glass has excellent solar control properties, allowing it to reflect, transmit, and absorb sunlight as needed while producing the desired reflective color and high-performance heat insulation effect. This makes it ideal for use in architectural glass curtain walls, and other building decoration applications.

Optical Parameters

Glass	Visible Light		Sunlight		Shading Co-efficient (SC)	Sum of Transmittance of Solar Energy (%)
Glass	Transmittance (%)	Reflectance (%)	Transmittance (%)	Reflectance (%)	Shading Co-efficient (SC)	Sum of Transmittance of Solar Energy (%)
4mm Euro Grey Reflective	26.90	19.59	37.38	17.36	0.55	49.05
6mm Euro Grey Reflective	19.55	13.99	27.64	12.69	0.48	42.97
4mm Dark Blue Reflective	25.62	13.98	39.36	16.47	0.57	50.76
5mm Dark Blue Reflective	20.92	12.52	33.42	15.00	0.53	46.73
6mm Dark Blue Reflective	13.42	13.68	25.52	16.81	0.45	40.40
5mm F-Green Reflective	31.12	34.80	25.49	19.61	0.45	39.65
6mm F-Green Reflective	29.94	33.72	21.12	18.92	0.41	36.59
5mm Ford Blue Reflective	27.50	19.38	37.07	16.56	0.55	49.03
6mm Ford Blue Reflective	24.97	16.51	32.04	14.72	0.51	45.78
5mm Dark Green Reflective	27.31	26.52	38.10	16.85	0.47	41.46
6mm Dark Green Reflective	25.40	24.35	32.95	14.88	0.45	40.30
5mm Bronze Reflective	25.78	16.65	39.85	16.60	0.54	47.73
6mm Bronze Reflective	20.45	16.28	34.50	15.25	0.48	43.08
4mm Pink Reflective	30.66	36.06	47.82	29.17	0.60	53.76
6mm Pink Reflective	29.92	28.64	46.40	22.14	0.61	54.52
4mm Dark Grey Reflective	17.96	10.10	30.09	11.30	0.51	45.21
5mm Dark Grey Reflective	14.03	9.07	25.06	10.56	0.47	42.05
6mm Dark Grey Reflective	13.02	6.97	22.70	8.20	0.46	40.53

Effective restraint in solar radiation, providing significant shading and excellent heat insulation

Ideal visible light transmittance and reflection ratio, reducing UV penetration

Perfect integration of the hard coating and the glass, resulting in stable performance and long storage time

Offering a variety of colorful reflective tones and outstanding decorative effects

Available in a single piece without special treatment

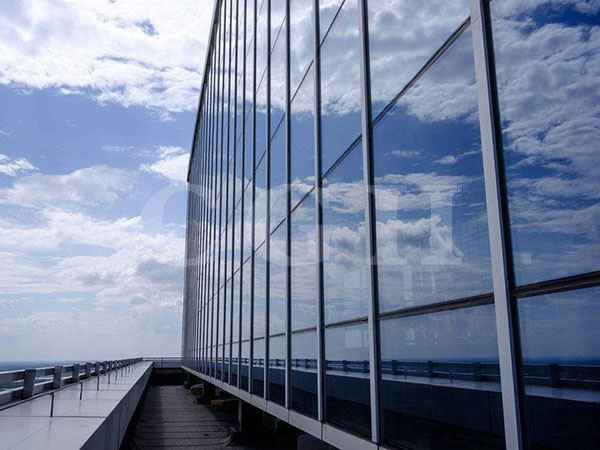

Our reflective glass is a versatile and attractive option that can be used for a variety of purposes such as building façades and doors and windows, interior decoration, and display windows.
